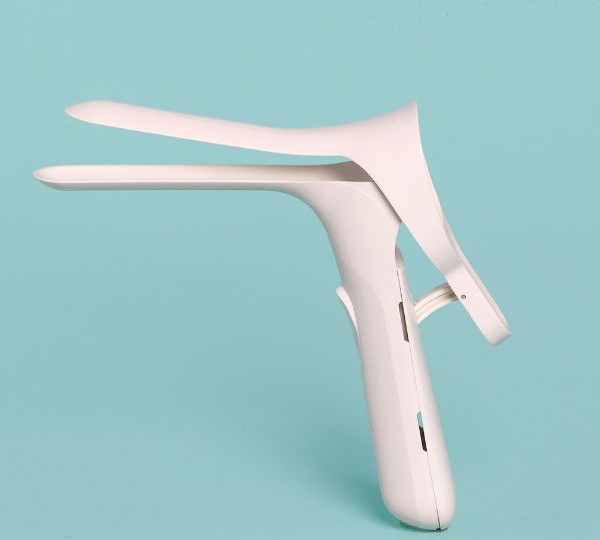

HOW TO USE THE NELLA KIND REUSABLE VAGINAL SPECULUM
1.
Start with the toggle on the back side of the handle in the locked position. This means pressing the inside button down.
3.
Once inserted, unlock the speculum to open. Unlock the speculum by pressing the toggle (located on the inside of the handle) up to the unlock position.
4.
Open Nella to desired size by pressing thumb tab on handle where the small flower icon is located.
5.
Switch the toggle into the locked position by pressing the lower half of the toggle down.
6.
When ready to remove Nella, press toggle upward with your pointer finger while at same time using thumb to press thumb tab down (where the flower icon is located). Speculum will unlock and gently close.
HOW TO USE THE NELLA KIND SINGLE-USE VAGINAL SPECULUM
1.
Open the polybag by tearing along the perforated line, above the purple arrows.
3.
On the back handle of the speculum is the locking and unlocking switch. Confirm the switch is down, which is the locked position.
4.
Activate the light source by removing the white circle tab on the top of the speculum.
7.
Insert the speculum into the vagina Make sure speculum is fully closed before insertion.
8.
Once inserted, open Nella by pressing the thumb tab on handle where the small clear flower icon is located. Nella will automatically stay open and locked in position.
9.
If necessary, open speculum by further depressing thumb tab.
10.
Slide the purple/purple switch on the back side of the handle up with your pointer finger to unlock and at the same time maintain pressure on thumb tab (where the flower icon is located).
11.
Speculum will unlock and gently close.(Push switch UP to unlock.)
HOW TO USE THE NELLA NEXT SINGLE-USE VAGINAL SPECULUM
1.
Open the polybag by tearing along the perforated line, above the pink arrows.
3.
On the back handle of the speculum is the locking and unlocking switch. Confirm the switch is down, which is the locked position.
4.
Activate the light source by removing the white circle tab on the top of the speculum.
7.
Insert the speculum into the vagina Make sure speculum is fully closed before insertion.
8.
Once inserted, open Nella by pressing the thumb tab on handle where the small clear flower icon is located. Nella will automatically stay open and locked in position.
9.
If necessary, open speculum by further depressing thumb tab.
10.
Slide the pink/purple switch on the back side of the handle up with your pointer finger to unlock and at the same time maintain pressure on thumb tab (where the flower icon is located).
11.
Speculum will unlock and gently close.
(Push switch UP to unlock.)
